Seagate Hard Disk FARM Log
Since version 6.20.7, Hard Disk Sentinel Pro can detect and read the internal Seagate Field Access Reliability Metrics log (FARM) log of Seagate SATA hard disk drives (if supported by the drive). The Seagate Field Access Reliability Metrics log (FARM) log contains details about the hard disk drive, including but not limited to the power on time, number of heads, recording type (CMR / SMR), error counters / statistics and so.

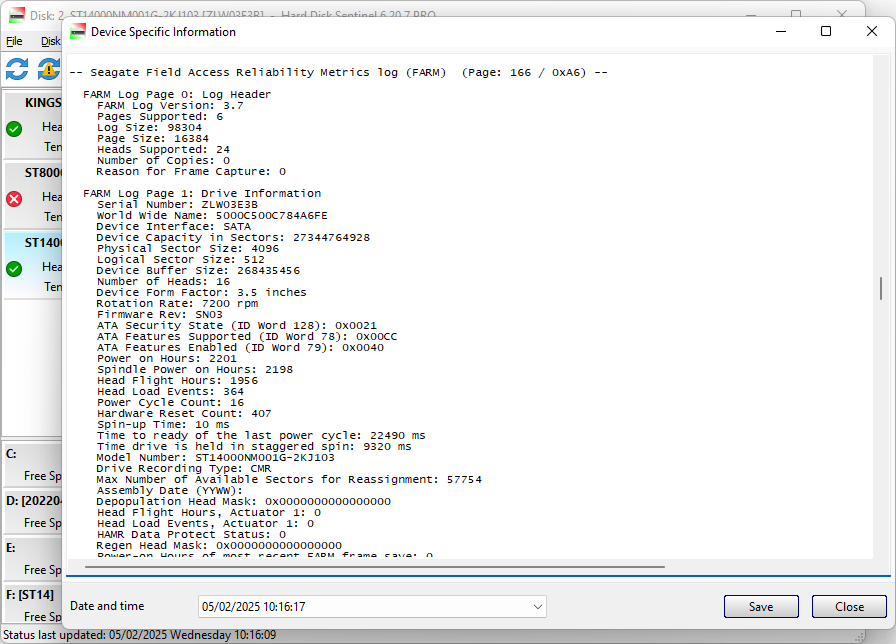

To check the internal Field Access Reliability Metrics log (FARM log) of the Seagate drive, please select the drive and use the Disk menu -> Device Specific Information function which reads the internal error logs, test logs and the FARM log - so you can examine all details:
To make things very simple and easy, Hard Disk Sentinel Pro automatically verifies the accuracy of the power on time value reported by the drive via "normal" S.M.A.R.T. attribute and compares to the power on hours value reported by the Seagate FARM log and displays both values automatically on the top of the window and the results:
if the value is correct and accurate

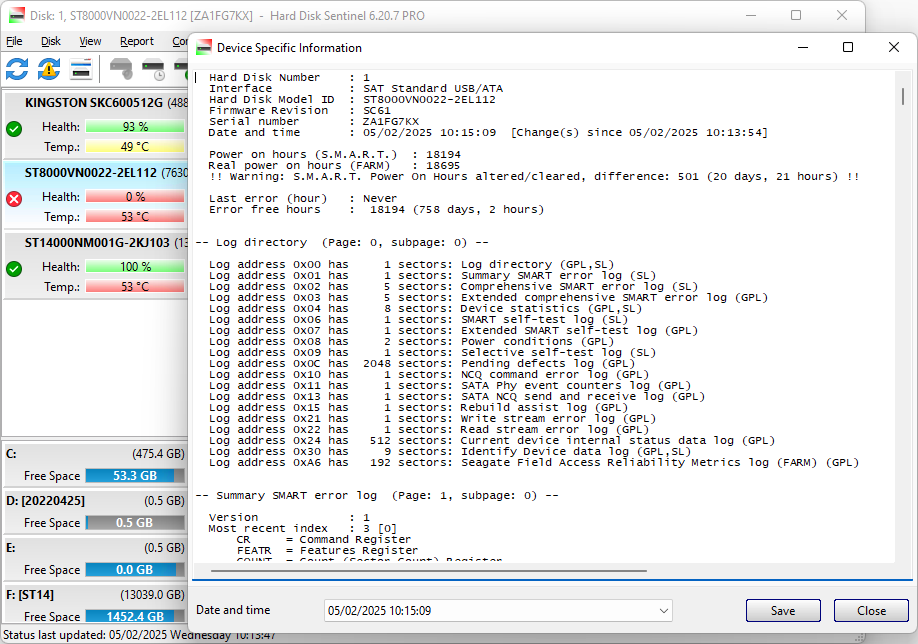

if the power on hours value altered/cleared/reset (and what is the difference, eg. how long the drive worked before the value reset)
In addition, the FARM log contains several information about the drive lifetime, operation environment statistics like temperature, power use, humidity (if supported by the drive). The following example is a complete Seagate Field Access Reliability Metrics log (FARM log) saved from a Seagate ST14000NM001G-2KJ103 SATA hard disk drive:
-- Seagate Field Access Reliability Metrics log (FARM) (Page: 166 / 0xA6) --
FARM Log Page 0: Log Header
FARM Log Version: 3.7
Pages Supported: 6
Log Size: 98304
Page Size: 16384
Heads Supported: 24
Number of Copies: 0
Reason for Frame Capture: 0
FARM Log Page 1: Drive Information
Serial Number: ZLW03E3B
World Wide Name: 5000C500C784A6FE
Device Interface: SATA
Device Capacity in Sectors: 27344764928
Physical Sector Size: 4096
Logical Sector Size: 512
Device Buffer Size: 268435456
Number of Heads: 16
Device Form Factor: 3.5 inches
Rotation Rate: 7200 rpm
Firmware Rev: SN03
ATA Security State (ID Word 128): 0x0021
ATA Features Supported (ID Word 78): 0x00CC
ATA Features Enabled (ID Word 79): 0x0040
Power on Hours: 2201
Spindle Power on Hours: 2198
Head Flight Hours: 1956
Head Load Events: 364
Power Cycle Count: 16
Hardware Reset Count: 407
Spin-up Time: 10 ms
Time to ready of the last power cycle: 22490 ms
Time drive is held in staggered spin: 9320 ms
Model Number: ST14000NM001G-2KJ103
Drive Recording Type: CMR
Max Number of Available Sectors for Reassignment: 57754
Assembly Date (YYWW):
Depopulation Head Mask: 0x0000000000000000
Head Flight Hours, Actuator 1: 0
Head Load Events, Actuator 1: 0
HAMR Data Protect Status: 0
Regen Head Mask: 0x0000000000000000
Power-on Hours of most recent FARM frame save: 0
Power-on Hours of 2nd most recent FARM frame save: 0
Sequential Or Before Required for active zone configuration: 0
Sequential Write Required for active zone configuration: 0
HSMR SWR capacity LBAs: 0
FARM Log Page 2: Workload Statistics
Total Number of Read Commands: 192233214
Total Number of Write Commands: 264009353
Total Number of Random Read Commands: 4411490
Total Number of Random Write Commands: 147936605
Total Number Of Other Commands: 168442
Logical Sectors Written: 69990858072
Logical Sectors Read: 94724031488
Number of dither events during current power cycle: 13285
Number of times dither was held off during random workloads: 13499
Number of times dither was held off during sequential workloads: 298
Number of Read commands from 0-3.125% of LBA space for last 3 SMART Summary Frames: 0
Number of Read commands from 3.125-25% of LBA space for last 3 SMART Summary Frames: 0
Number of Read commands from 25-75% of LBA space for last 3 SMART Summary Frames: 0
Number of Read commands from 75-100% of LBA space for last 3 SMART Summary Frames: 0
Number of Write commands from 0-3.125% of LBA space for last 3 SMART Summary Frames: 0
Number of Write commands from 3.125-25% of LBA space for last 3 SMART Summary Frames: 0
Number of Write commands from 25-75% of LBA space for last 3 SMART Summary Frames: 0
Number of Write commands from 75-100% of LBA space for last 3 SMART Summary Frames: 0
FARM Log Page 3: Error Statistics
Unrecoverable Read Errors: 0
Unrecoverable Write Errors: 0
Number of Reallocated Sectors: 0
Number of Read Recovery Attempts: 0
Number of Mechanical Start Failures: 0
Number of Reallocated Candidate Sectors: 0
Number of ASR Events: 5
Number of Interface CRC Errors: 0
Spin Retry Count: 0
Spin Retry Count Normalized: 100
Spin Retry Count Worst: 100
Number of IOEDC Errors (Raw): 0
CTO Count Total: 184
CTO Count Over 5s: 2
CTO Count Over 7.5s: 2
Total Flash LED (Assert) Events: 0
Index of the last Flash LED: 0
Flash LED Event 0:
Event Information: 0x0000000000000000
Timestamp of Event 0 (hours): 0
Power Cycle Event 0: 0
Flash LED Event 1:
Event Information: 0x0000000000000000
Timestamp of Event 1 (hours): 0
Power Cycle Event 1: 0
Flash LED Event 2:
Event Information: 0x0000000000000000
Timestamp of Event 2 (hours): 0
Power Cycle Event 2: 0
Flash LED Event 3:
Event Information: 0x0000000000000000
Timestamp of Event 3 (hours): 0
Power Cycle Event 3: 0
Flash LED Event 4:
Event Information: 0x0000000000000000
Timestamp of Event 4 (hours): 0
Power Cycle Event 4: 0
Flash LED Event 5:
Event Information: 0x0000000000000000
Timestamp of Event 5 (hours): 0
Power Cycle Event 5: 0
Flash LED Event 6:
Event Information: 0x0000000000000000
Timestamp of Event 6 (hours): 0
Power Cycle Event 6: 0
Flash LED Event 7:
Event Information: 0x0000000000000000
Timestamp of Event 7 (hours): 0
Power Cycle Event 7: 0
Uncorrectable errors: 0
Cumulative Lifetime Unrecoverable Read errors due to ERC: 0
Cum Lifetime Unrecoverable by head 0:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 1:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 2:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 3:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 4:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 5:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 6:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 7:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 8:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 9:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 10:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 11:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 12:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 13:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 14:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 15:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
FARM Log Page 4: Environment Statistics
Current Temperature (Celsius): 53
Highest Temperature: 62
Lowest Temperature: 26
Average Short Term Temperature: 53
Average Long Term Temperature: 46
Highest Average Short Term Temperature: 57
Lowest Average Short Term Temperature: 38
Highest Average Long Term Temperature: 46
Lowest Average Long Term Temperature: 41
Time In Over Temperature (minutes): 42
Time In Under Temperature (minutes): 0
Specified Max Operating Temperature: 60
Specified Min Operating Temperature: 5
Current Relative Humidity: 0
Current Motor Power: 2182
Current 12 volts: 12.156
Minimum 12 volts: 12.001
Maximum 12 volts: 12.183
Current 5 volts: 5.060
Minimum 5 volts: 5.045
Maximum 5 volts: 5.069
12V Power Average: 0.000
12V Power Minimum: 0.000
12V Power Maximum: 0.000
5V Power Average: 0.000
5V Power Minimum: 0.000
5V Power Maximum: 0.000
FARM Log Page 5: Reliability Statistics
Error Rate (SMART Attribute 1 Raw): 0x000000000A88E958
Error Rate (SMART Attribute 1 Normalized): 82
Error Rate (SMART Attribute 1 Worst): 64
Seek Error Rate (SMART Attr 7 Raw): 0x000000000708DC8D
Seek Error Rate (SMART Attr 7 Normalized): 81
Seek Error Rate (SMART Attr 7 Worst): 60
High Priority Unload Events: 11
Helium Pressure Threshold Tripped: 0
LBAs Corrected By Parity Sector: 0
Disc Slip Recalibrations Performed: 0
DVGA Skip Write Detect by Head 0: 0
DVGA Skip Write Detect by Head 1: 0
DVGA Skip Write Detect by Head 2: 0
DVGA Skip Write Detect by Head 3: 0
DVGA Skip Write Detect by Head 4: 0
DVGA Skip Write Detect by Head 5: 0
DVGA Skip Write Detect by Head 6: 0
DVGA Skip Write Detect by Head 7: 0
DVGA Skip Write Detect by Head 8: 0
DVGA Skip Write Detect by Head 9: 0
DVGA Skip Write Detect by Head 10: 0
DVGA Skip Write Detect by Head 11: 0
DVGA Skip Write Detect by Head 12: 0
DVGA Skip Write Detect by Head 13: 0
DVGA Skip Write Detect by Head 14: 0
DVGA Skip Write Detect by Head 15: 0
RVGA Skip Write Detect by Head 0: 0
RVGA Skip Write Detect by Head 1: 0
RVGA Skip Write Detect by Head 2: 0
RVGA Skip Write Detect by Head 3: 0
RVGA Skip Write Detect by Head 4: 0
RVGA Skip Write Detect by Head 5: 0
RVGA Skip Write Detect by Head 6: 0
RVGA Skip Write Detect by Head 7: 0
RVGA Skip Write Detect by Head 8: 0
RVGA Skip Write Detect by Head 9: 0
RVGA Skip Write Detect by Head 10: 0
RVGA Skip Write Detect by Head 11: 0
RVGA Skip Write Detect by Head 12: 0
RVGA Skip Write Detect by Head 13: 0
RVGA Skip Write Detect by Head 14: 0
RVGA Skip Write Detect by Head 15: 0
FVGA Skip Write Detect by Head 0: 0
FVGA Skip Write Detect by Head 1: 0
FVGA Skip Write Detect by Head 2: 0
FVGA Skip Write Detect by Head 3: 0
FVGA Skip Write Detect by Head 4: 0
FVGA Skip Write Detect by Head 5: 0
FVGA Skip Write Detect by Head 6: 0
FVGA Skip Write Detect by Head 7: 0
FVGA Skip Write Detect by Head 8: 0
FVGA Skip Write Detect by Head 9: 0
FVGA Skip Write Detect by Head 10: 0
FVGA Skip Write Detect by Head 11: 0
FVGA Skip Write Detect by Head 12: 0
FVGA Skip Write Detect by Head 13: 0
FVGA Skip Write Detect by Head 14: 0
FVGA Skip Write Detect by Head 15: 0
Skip Write Detect Threshold Exceeded by Head 0: 0
Skip Write Detect Threshold Exceeded by Head 1: 0
Skip Write Detect Threshold Exceeded by Head 2: 0
Skip Write Detect Threshold Exceeded by Head 3: 0
Skip Write Detect Threshold Exceeded by Head 4: 0
Skip Write Detect Threshold Exceeded by Head 5: 0
Skip Write Detect Threshold Exceeded by Head 6: 0
Skip Write Detect Threshold Exceeded by Head 7: 0
Skip Write Detect Threshold Exceeded by Head 8: 0
Skip Write Detect Threshold Exceeded by Head 9: 0
Skip Write Detect Threshold Exceeded by Head 10: 0
Skip Write Detect Threshold Exceeded by Head 11: 0
Skip Write Detect Threshold Exceeded by Head 12: 0
Skip Write Detect Threshold Exceeded by Head 13: 0
Skip Write Detect Threshold Exceeded by Head 14: 0
Skip Write Detect Threshold Exceeded by Head 15: 0
Write Power On (hrs) by Head 0: 11700
Write Power On (hrs) by Head 1: 10664
Write Power On (hrs) by Head 2: 10074
Write Power On (hrs) by Head 3: 10284
Write Power On (hrs) by Head 4: 9657
Write Power On (hrs) by Head 5: 10445
Write Power On (hrs) by Head 6: 9882
Write Power On (hrs) by Head 7: 10485
Write Power On (hrs) by Head 8: 9741
Write Power On (hrs) by Head 9: 10124
Write Power On (hrs) by Head 10: 9319
Write Power On (hrs) by Head 11: 10243
Write Power On (hrs) by Head 12: 9748
Write Power On (hrs) by Head 13: 9887
Write Power On (hrs) by Head 14: 10750
Write Power On (hrs) by Head 15: 9915
MR Head Resistance from Head 0: 440
MR Head Resistance from Head 1: 428
MR Head Resistance from Head 2: 449
MR Head Resistance from Head 3: 500
MR Head Resistance from Head 4: 472
MR Head Resistance from Head 5: 456
MR Head Resistance from Head 6: 372
MR Head Resistance from Head 7: 528
MR Head Resistance from Head 8: 500
MR Head Resistance from Head 9: 507
MR Head Resistance from Head 10: 455
MR Head Resistance from Head 11: 548
MR Head Resistance from Head 12: 346
MR Head Resistance from Head 13: 424
MR Head Resistance from Head 14: 442
MR Head Resistance from Head 15: 436
Second MR Head Resistance by Head 0: 440
Second MR Head Resistance by Head 1: 428
Second MR Head Resistance by Head 2: 449
Second MR Head Resistance by Head 3: 500
Second MR Head Resistance by Head 4: 472
Second MR Head Resistance by Head 5: 456
Second MR Head Resistance by Head 6: 372
Second MR Head Resistance by Head 7: 528
Second MR Head Resistance by Head 8: 500
Second MR Head Resistance by Head 9: 507
Second MR Head Resistance by Head 10: 455
Second MR Head Resistance by Head 11: 548
Second MR Head Resistance by Head 12: 346
Second MR Head Resistance by Head 13: 424
Second MR Head Resistance by Head 14: 442
Second MR Head Resistance by Head 15: 436
Number of Reallocated Sectors by Head 0: 0
Number of Reallocated Sectors by Head 1: 0
Number of Reallocated Sectors by Head 2: 0
Number of Reallocated Sectors by Head 3: 0
Number of Reallocated Sectors by Head 4: 0
Number of Reallocated Sectors by Head 5: 0
Number of Reallocated Sectors by Head 6: 0
Number of Reallocated Sectors by Head 7: 0
Number of Reallocated Sectors by Head 8: 0
Number of Reallocated Sectors by Head 9: 0
Number of Reallocated Sectors by Head 10: 0
Number of Reallocated Sectors by Head 11: 0
Number of Reallocated Sectors by Head 12: 0
Number of Reallocated Sectors by Head 13: 0
Number of Reallocated Sectors by Head 14: 0
Number of Reallocated Sectors by Head 15: 0
Number of Reallocation Candidate Sectors by Head 0: 0
Number of Reallocation Candidate Sectors by Head 1: 0
Number of Reallocation Candidate Sectors by Head 2: 0
Number of Reallocation Candidate Sectors by Head 3: 0
Number of Reallocation Candidate Sectors by Head 4: 0
Number of Reallocation Candidate Sectors by Head 5: 0
Number of Reallocation Candidate Sectors by Head 6: 0
Number of Reallocation Candidate Sectors by Head 7: 0
Number of Reallocation Candidate Sectors by Head 8: 0
Number of Reallocation Candidate Sectors by Head 9: 0
Number of Reallocation Candidate Sectors by Head 10: 0
Number of Reallocation Candidate Sectors by Head 11: 0
Number of Reallocation Candidate Sectors by Head 12: 0
Number of Reallocation Candidate Sectors by Head 13: 0
Number of Reallocation Candidate Sectors by Head 14: 0
Number of Reallocation Candidate Sectors by Head 15: 0

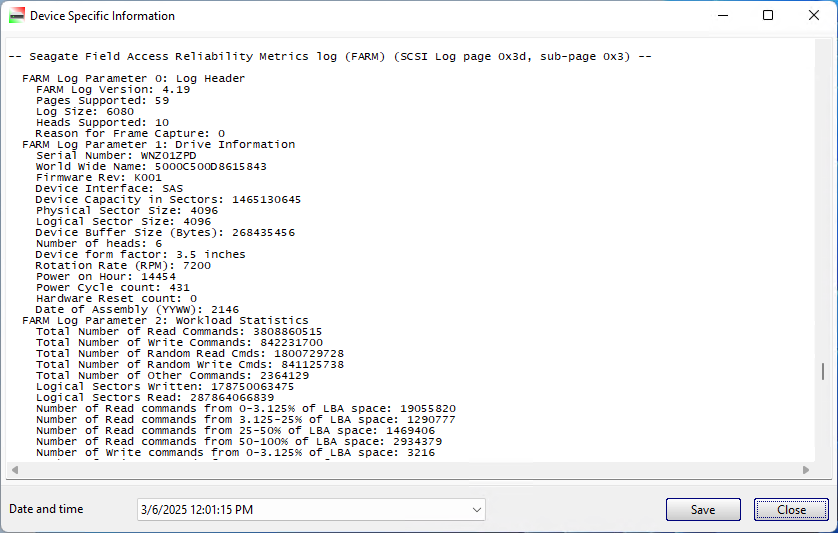

Looking forward to detect and report additional details and ideally hard disk drives of other manufacturers will provide same level (or similar) details like the Seagate Field Access Reliability Metrics log (FARM log) Hard Disk Sentinel can detect from the supported Seagate hard disk drives.
